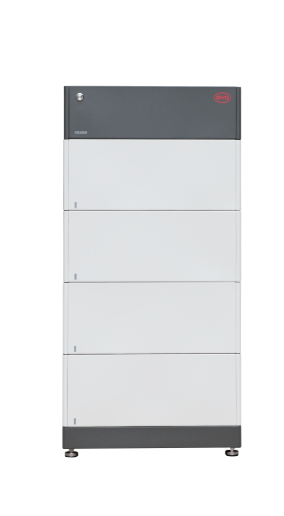

BYD 8.3 kWh HVM Serisi Batterybox Premium Akü
BYD 8.3 kWh HVM Serisi Batterybox Premium Akü
Normal fiyat
309,375.10TL
Normal fiyat
İndirimli fiyat
309,375.10TL
Birim fiyat
/
/
Vergiler dahil.
Teslim alım stok durumu yüklenemedi

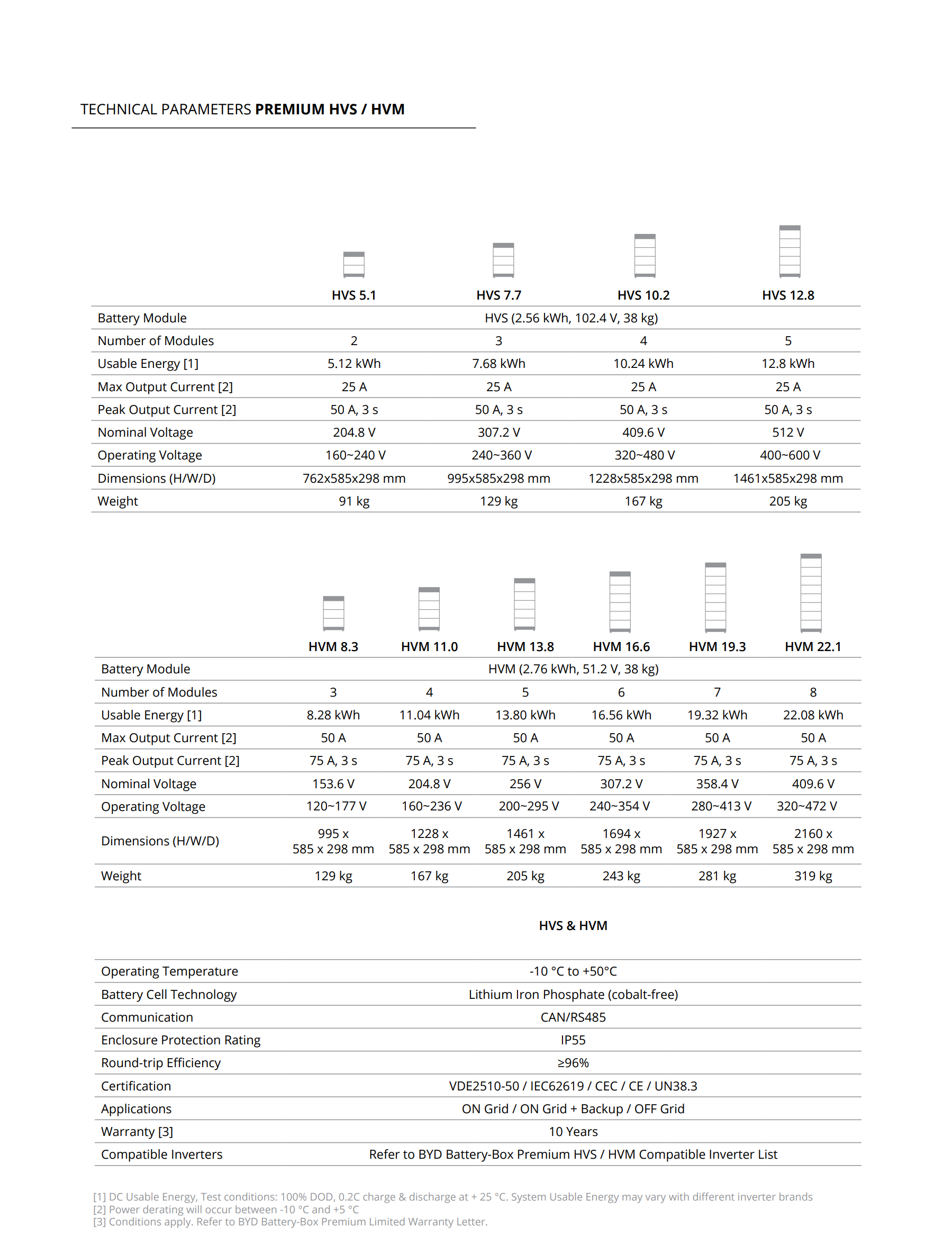

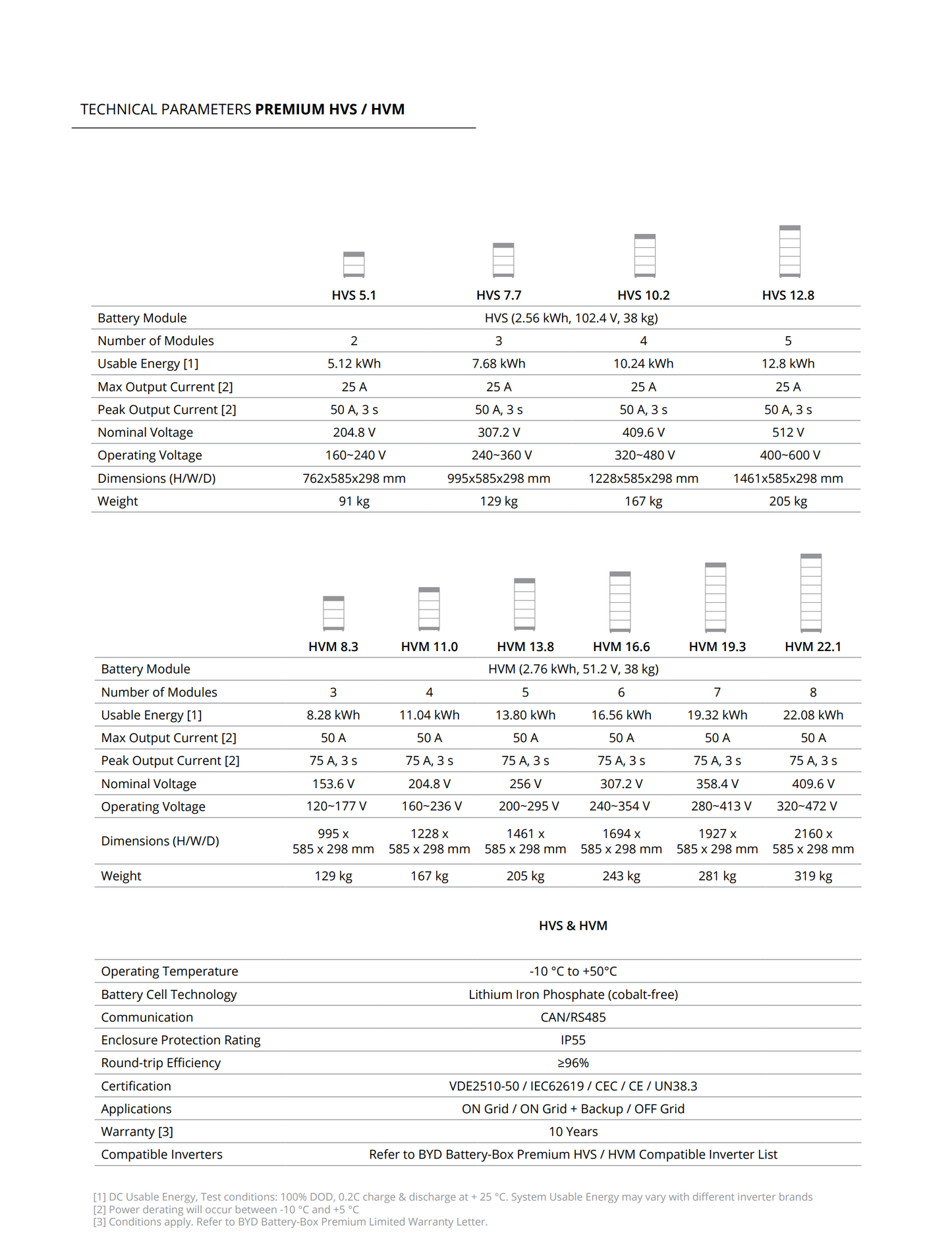

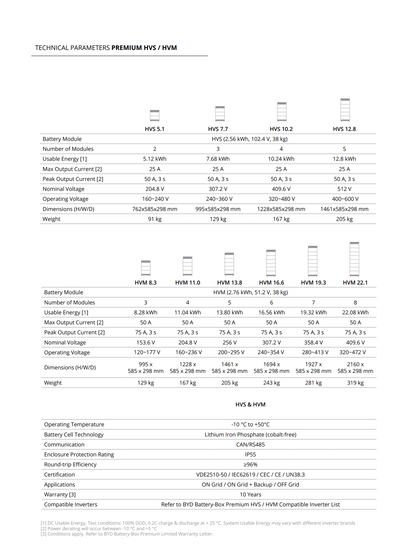

| Özellik | HVM 8.3 kWh |
|---|---|
| Battery Module | HVM (2.76 kWh, 51.2 V, 38 kg) |
| Number of Modules | 3 |
| Usable Energy | 8.28 kWh |
| Max Output Current | 50 A |
| Peak Output Current | 75 A, 3 s |
| Nominal Voltage | 153.6 V |
| Operating Voltage | 120 - 177 V |
| Dimensions (H x W x D) | 995 x 585 x 298 mm |
| Weight | 129 kg |
| Operating Temperature | -10°C to +50°C |
| Battery Cell Technology | Lithium Iron Phosphate (cobalt-free) |
| Communication | CAN / RS485 |
| Enclosure Protection Rating | IP55 |
| Round-trip Efficiency | ≥96% |
| Certification | VDE2510-50 / IEC62619 / CEC / CE / UN38.3 |
| Applications | ON Grid / ON Grid + Backup / OFF Grid |
| Warranty | 10 Years |
| Compatible Inverters | Refer to BYD Battery-Box Premium HVM Compatible Inverter List |
