Sistem AVM

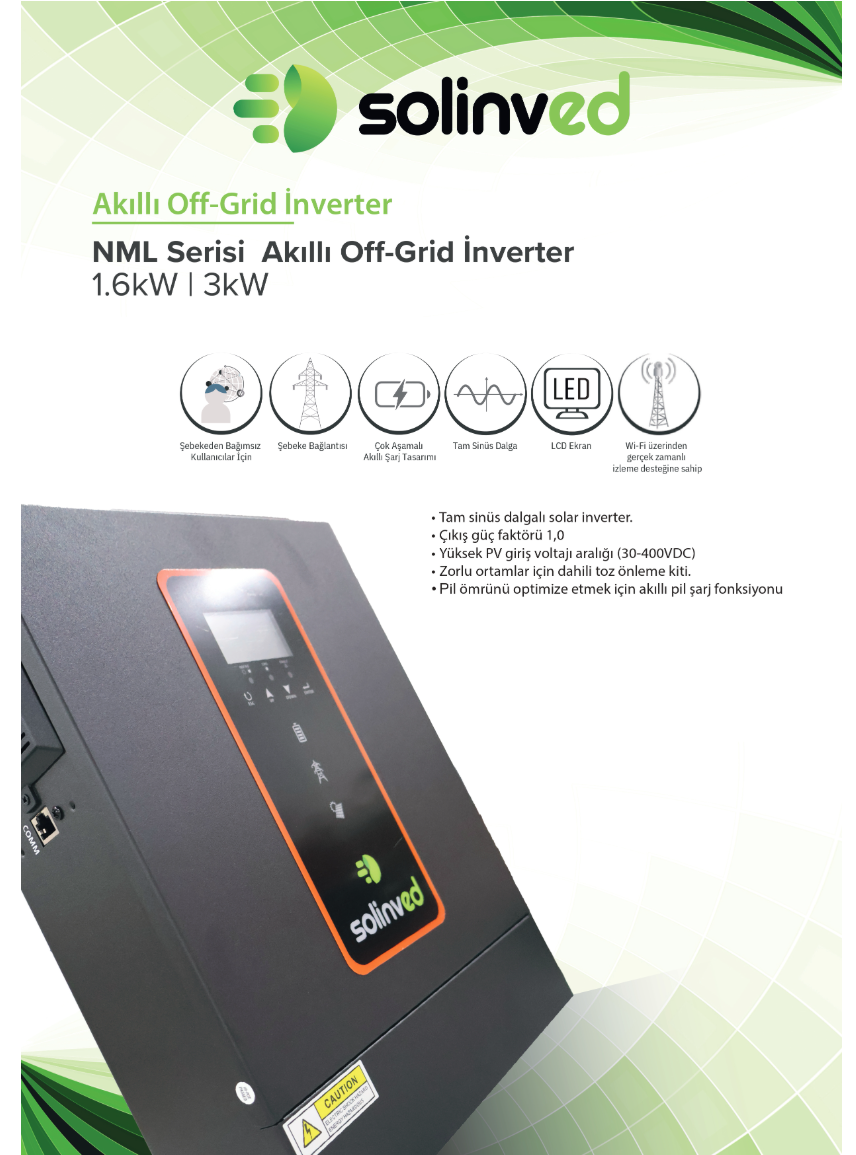

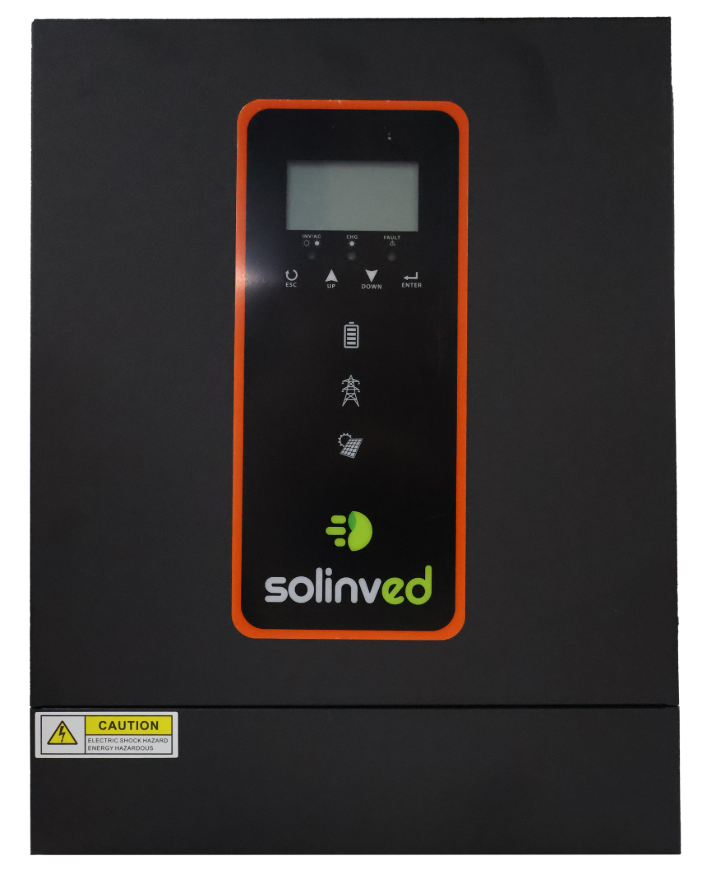

Solinved 3 kW Nml Series MPPT Off Grid Inverter
Solinved 3 kW Nml Series MPPT Off Grid Inverter
Regular price
14,063.80TL
Regular price
Sale price
14,063.80TL
Unit price
/
per
Taxes included.
Couldn't load pickup availability

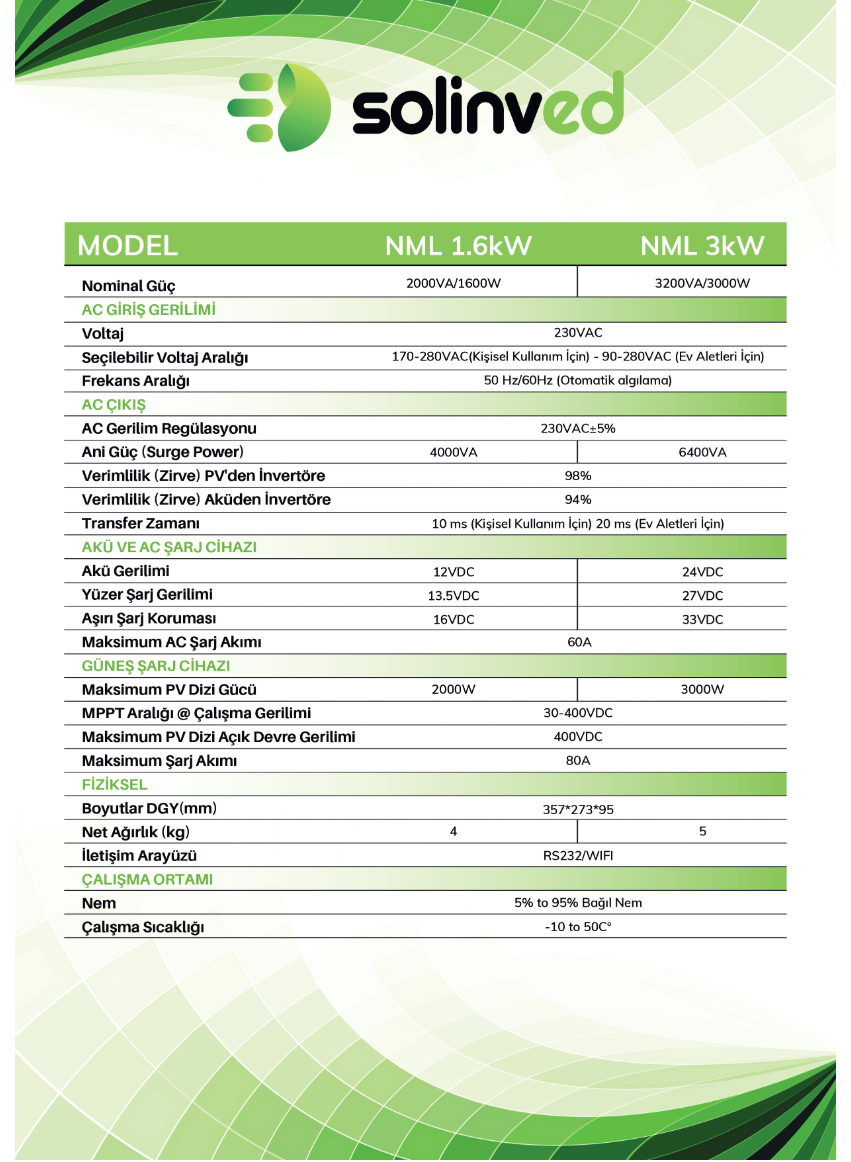

| Feature | NML 1.6kW | NML 3kW |
|---|---|---|
| Rated Power | 2000VA / 1600W | 3200VA / 3000W |
| AC Input Voltage | ||
| Voltage | 230VAC | |
| Selectable Voltage Range | 170-280VAC (For Personal Use) - 90-280VAC (For Home Appliances) | |
| Frequency Range | 50Hz / 60Hz (Auto Detection) | |
| AC Output | ||
| AC Voltage Regulation | 230VAC ±5% | |
| Surge Power | 4000VA | 6400VA |
| Efficiency (Peak) PV to Inverter | 98% | |
| Efficiency (Peak) Battery to Inverter | 94% | |
| Transfer Time | 10 ms (For Personal Use), 20 ms (For Home Appliances) | |
| Battery and AC Charger | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 33VDC |
| Maximum AC Charge Current | 60A | |
| Solar Charger | ||
| Maximum PV Array Power | 2000W | 3000W |
| MPPT Range @ Operating Voltage | 30-400VDC | |
| Maximum PV Array Open Circuit Voltage | 400VDC | |
| Maximum Charge Current | 80A | |
| Physically | ||
| Dimensions DHY (mm) | 357*273*95 | |
| Net Weight (kg) | 4 | 5 |
| Communication Interface | RS232 / WIFI | |
| Working Environment | ||
| Moisture | 5% to 95% Relative Humidity | |
| Working Temperature | -10°C - 50°C | |
