Sistem AVM

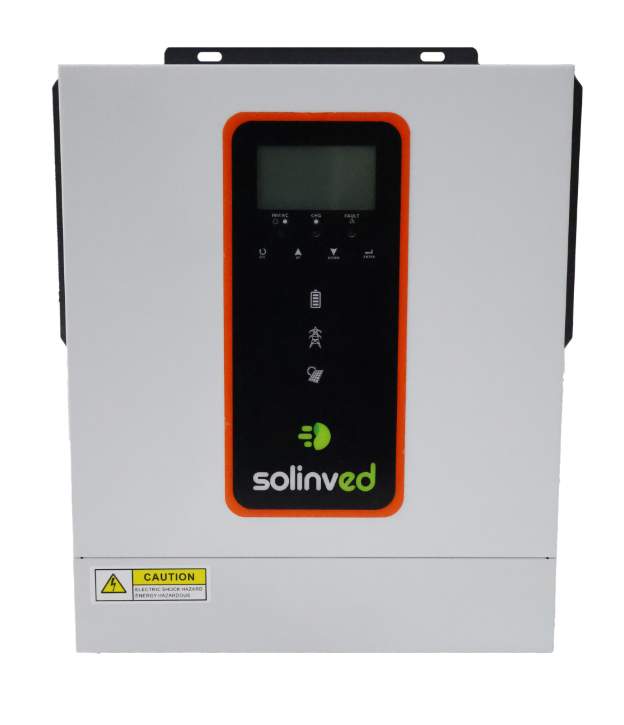

Solinved 1 kW Victor Nms Series MPPT Off-Grid Inverter
Solinved 1 kW Victor Nms Series MPPT Off-Grid Inverter
Regular price
9,918.00TL
Regular price
Sale price
9,918.00TL
Unit price
/
per
Taxes included.
Couldn't load pickup availability

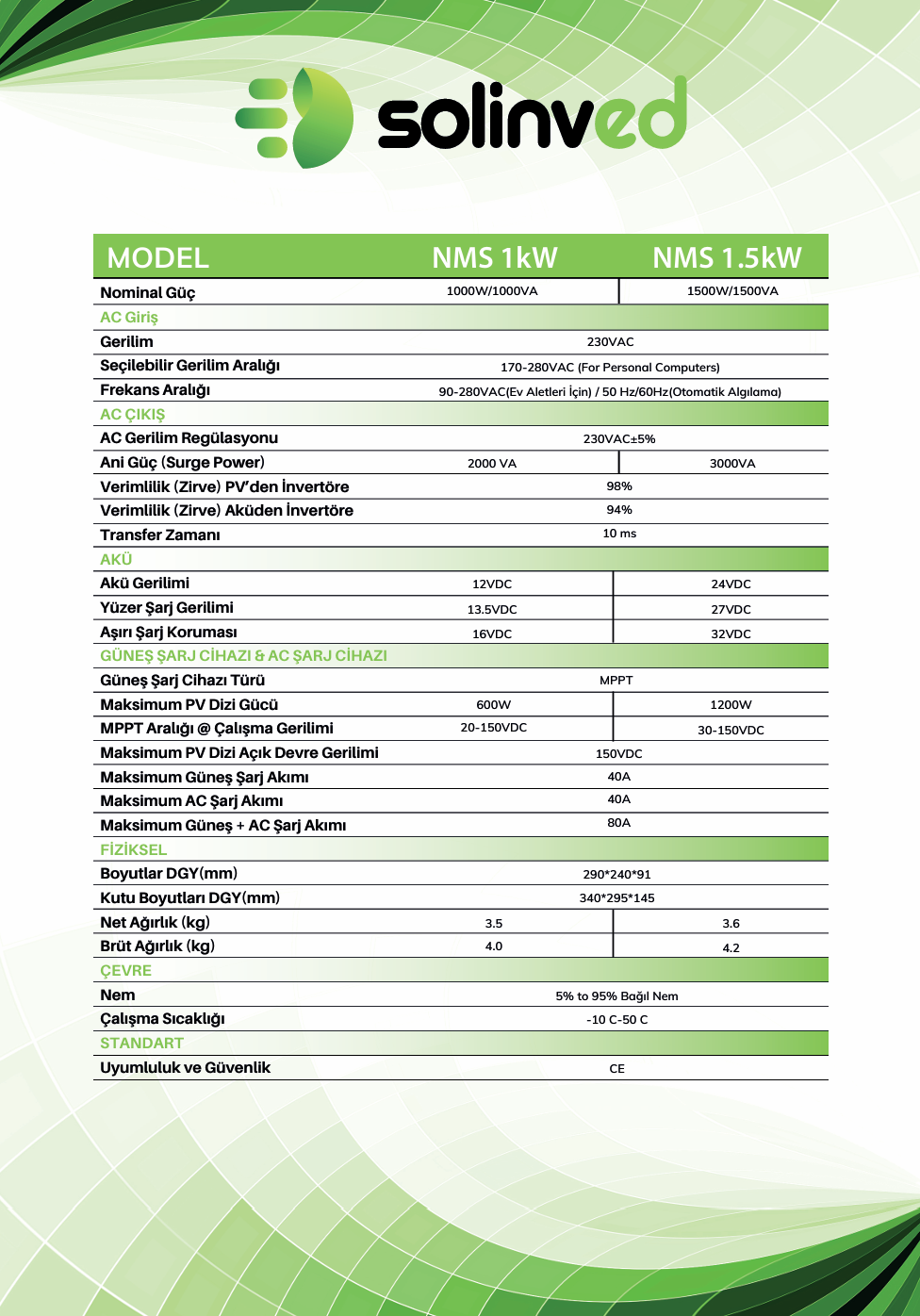

| Feature | NMS 1kW | NMS 1.5kW |
|---|---|---|
| Rated Power | 1000W / 1000VA | 1500W / 1500VA |
| AC Input | ||
| Income | 230VAC | |
| Selectable Voltage Range | 170-280VAC (For Personal Computers) | |
| Frequency Range | 90-280VAC (For Home Appliances) / 50 Hz/60Hz (Auto Detection) | |
| AC Output | ||
| AC Voltage Regulation | 230VAC ±5% | |
| Surge Power | 2000VA | 3000VA |
| Efficiency (Peak) PV to Inverter | 98% | |
| Efficiency (Peak) Battery to Inverter | 94% | |
| Transfer Time | 10ms | |
| Battery | ||
| Battery Voltage | 12VDC | 24VDC |
| Floating Charge Voltage | 13.5VDC | 27VDC |
| Overcharge Protection | 16VDC | 32VDC |
| Solar Charger & AC Charger | ||
| Solar Charger Type | MPPT | |
| Maximum PV Array Power | 600W | 1200W |
| MPPT Range @ Operating Voltage | 20-150VDC | 30-150VDC |
| Maximum PV Array Open Circuit Voltage | 150VDC | |
| Maximum Solar Charging Current | 40A | |
| Maximum AC Charge Current | 40A | |
| Maximum Solar + AC Charging Current | 80A | |
| Physically | ||
| Dimensions DHY (mm) | 290*240*91 | |
| Box Dimensions DHY (mm) | 340*295*145 | |
| Net Weight (kg) | 3.5 | 3.6 |
| Gross Weight (kg) | 4.0 | 4.2 |
| Environment | ||
| Moisture | 5% to 95% Relative Humidity | |
| Working Temperature | -10°C - 50°C | |
| Standard | ||
| Compatibility and Security | CE | |
